Configure the new RegisteredServiceProvider

[Stephen.A.Gorman]

LEAF version: 3.12

LEAF component(s): React app

Issue/Question:
I am migrating to the 3.12 Kubernetes-backed Service Discovery and would like some help wiring it up. In the LEAF documentation the component below is shown.

<RegisteredServiceProvider
      interval={null}
      serviceRegistryPath={serviceRegistryPath}
      user={user}
      defaultService={k8sDefaultService}
      preRequest={preRequest}
      configuredServices={configuredK8sServices}
      requireSelectedService
    >

Can I get a brief description of these configs and a simple example, or just point me to the documentation describing them. I how I haven’t missed something in my search for documentation.

Thank you.
sg

[Stephen.A.Gorman]

Here are some of the issues I have encountered so far.

1. The documentation says to install

yarn add @leaf-platform/service-discovery

presumably, for the import line to work. My IDE tells me the component is not in the service-discovery package. Here’s the dependency from my package.json.

“@leaf-platform/service-discovery”: “3.12.1”,

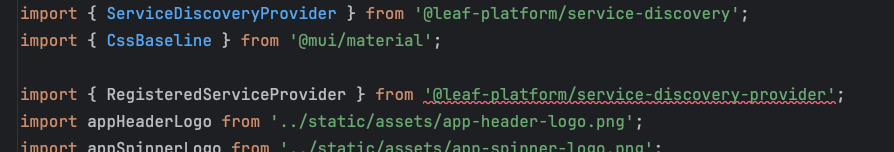

My IDE’s intellisense complaint.

So I am doing something wrong.

2. What’s the defaultService?

3. Is this the expected preRequest,

const DEFAULT_USER = {
  username: 'AnonymousSystemUser',
  authorizationProp: 'LEAF_SYSTEM_USER',
};

const preRequest = (endpoint) => {
  // eslint-disable-next-line no-param-reassign
  endpoint.headers.user = JSON.stringify(DEFAULT_USER);
  return endpoint;
};

but then why would I need the “user” entry?

4. Can I wrap the old with the new , kind of like…

    <AppFrame useDarkFrame>
      <ThemeProvider defaultDarkTheme>
        <ThemeWrapper>
          <CssBaseline />

          <LogoProvider
            appHeaderLogo={appHeaderLogo}
            appSpinnerLogo={appSpinnerLogo}
            appName="OC2ELOT"
            appTitle={appTitle}
            appDescription={<AppDescription />}
          >
            <RegisteredServiceProvider
              interval={null}
              serviceRegistryPath={dataServices.get('service-registry').restUrl}
              user={DEFAULT_USER}
              defaultService={k8sDefaultService}
              preRequest={preRequest}
              configuredServices={dataServices}
              requireSelectedService
            >
              <ServiceDiscoveryProvider
                user={DEFAULT_USER}
                registryPath={dataServices.get('service-registry').restUrl}
                socketPath={wsUrl}
              >
                 ...

[hammenj]

Hi, Steve! Just confirming that this is the issue about which Terry was working with you offline on Friday and that you got all your questions answered.

[Stephen.A.Gorman]

Hi Jenna, it sure is and Terry was a great help. I am testing this right now on a cluster and if it all works I will update this ticket with my results.

[Stephen.A.Gorman]

Results:

There is a typo in the leaf docs that has been partially fixed here: this is how to add the component to a react-app.

yarn add @leaf-platform/service-discovery-provider

It worked. I used the answers provided by Terry to configure the new kubernetes-backed service-registry with two functional services. In both services I answered ‘yes’ to the yeoman question: “should this service be discoverable” which has the effect of making the service capable of being a service registry. I then pointed my react-app at a randomly chosen service.

A particularly nice piece of functionality is the use of the JS parameter ‘configuredServices’ on the RegisteredServiceProvider component. This let’s you register older data services that used the REST based SR.

            <RegisteredServiceProvider
              interval={null}
              serviceRegistryPath="state-vector-staging-fs/rest"
              user={DEFAULT_USER}
              defaultService="ui-support-service"
              preRequest={preRequest}
              configuredServices={k8services}
              requireSelectedService
            >

Where k8Services is set like

const k8services = window.ENV?.CONFIGURED_SERVERS || {};

And defined in my environment.js like

  'tspi-ds.launch-to-orbit': {
    annotations: {
      'data-service.leidos-leaf.com/event-service-uri':
        'ws://websocket-service/web-socket/event-query',
      'leaf-tools.leidos-leaf.com/live-metadata-editing': 'true',
      'leaf-tools.leidos-leaf.com/non-live-metadata-editing': 'false',
      'leaf-tools.leidos-leaf.com/rule-editing': 'false',
      'leaf-tools.leidos-leaf.com/rule-viewing': 'false',
      'service.leidos-leaf.com/base-uri': 'http://localhost/tspi-ds/rest',
    },
    available: true,
    capabilities: ['Data Store'],
    endpoints: {
      oasEndpointJson: '/app/openapi.json',
      oasEndpointYaml: '/app/openapi.yaml',
    },
    name: 'tspi-ds',
    namespace: 'launch-to-orbit',
    serviceKey: 'tspi-ds.launch-to-orbit',
  },

Findings

• It seems you can run both REST/Kubernetes service registries simultaneously, but each will have a different view of what is, and is not available.
• I receive CORS errors when the service acting as service registry is not in the same namespace as the react-app. This could be a configuration issue, but I don’t recall having this issue with the old REST based one.

---

Attachments

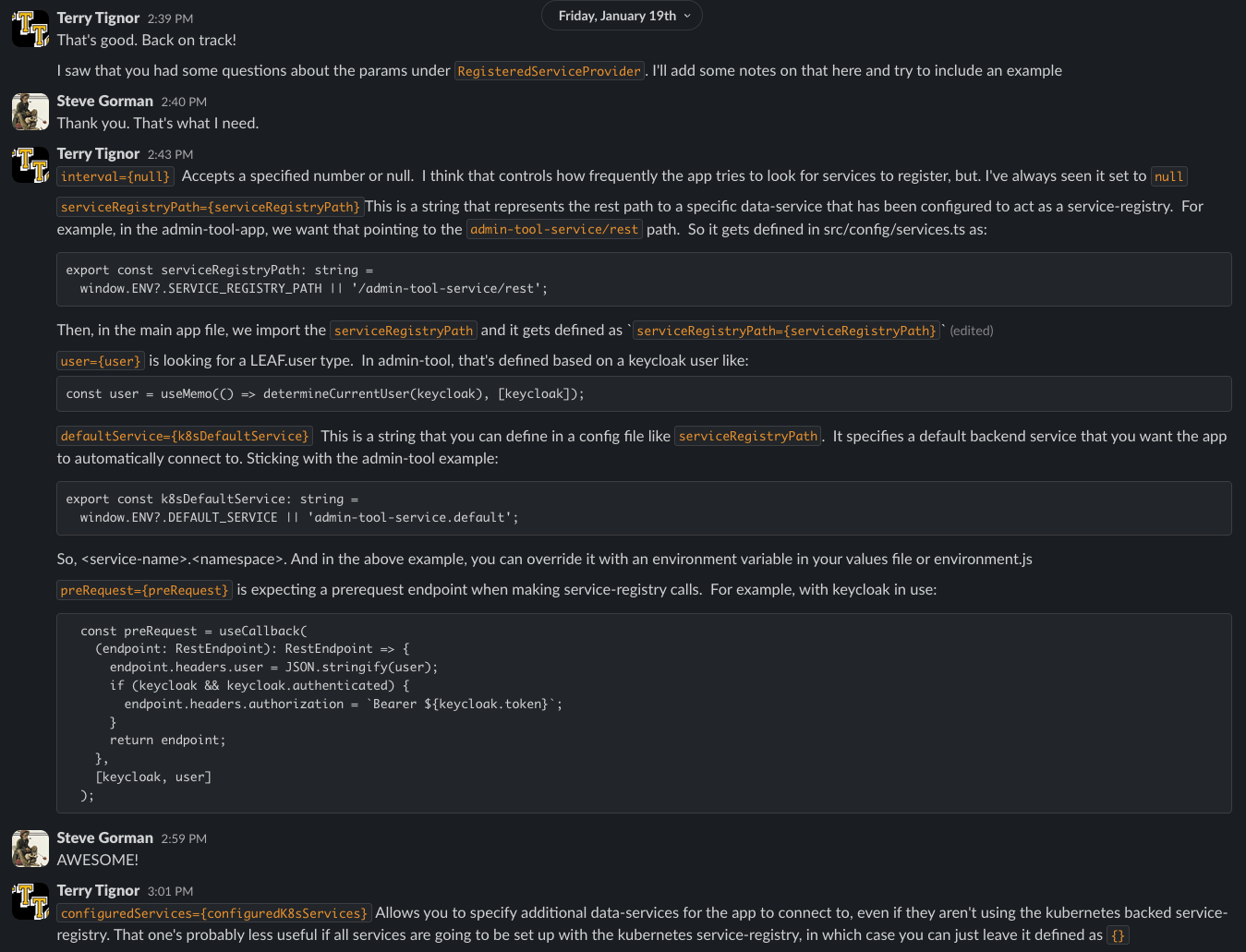

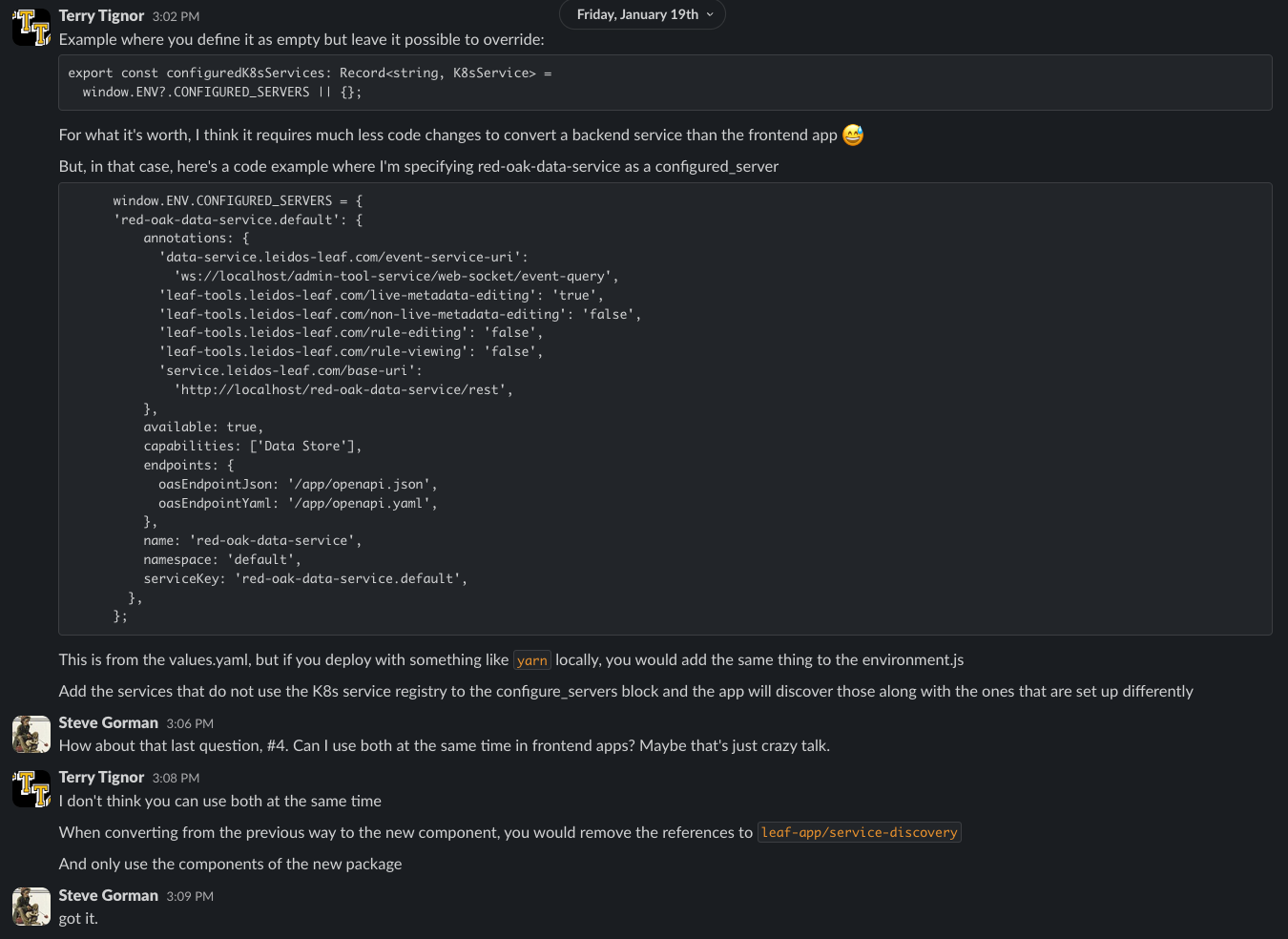

Here is the conversation I had in Slack with Terry,
